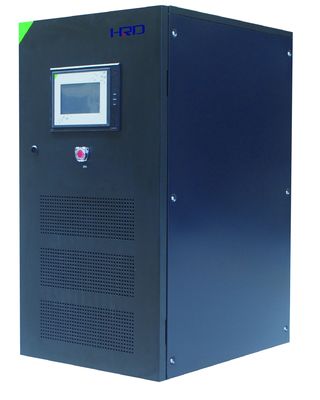

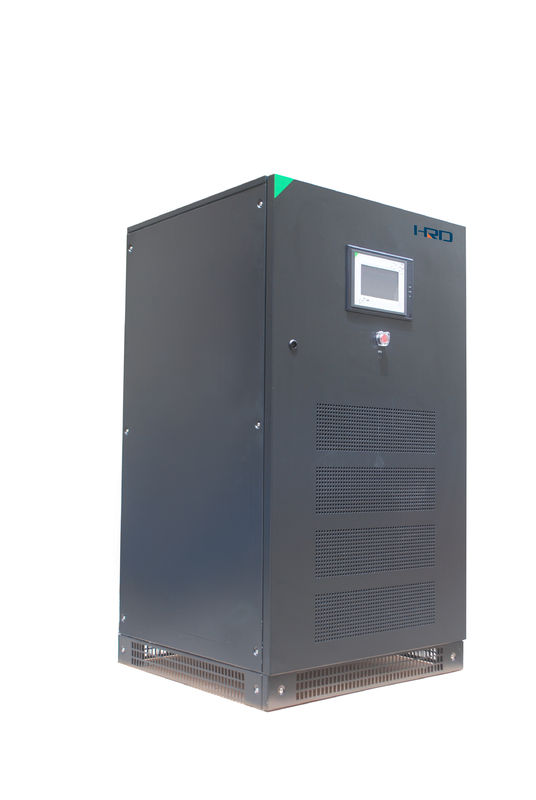

Online Low Frequency UPS With Double Conversion10-200kVA High Volatge 480Vac/60Hz

PEA II series is a fully DSP controlled high-level industry UPS for 480Vac power grid.

Based on nowadays the most advanced DSP(TI 2833X CPU), MCU, CPLD ect ,and more than 20nos leading innovative technology ,this UPS has become a perfect robust and cost-effective power solution, optimizing the minimal operating cost for end

users.

Its extremely high reliability can solidly ensure the continuous availability of power and safe operations for all types of critical load.

Fully DSP technology with extremely low cycle current,it can be parallel up to 8 units for redundancy or capacity expanding purpose.

Super reliability and excellent performance based on innovative solution,it definitely

ensures your business away from any power problem!

Perfect Applications:Petroleum&chemical industry, metallurgy, nuclear power, electric power, industrial manufacturing, rail transit &high way tunnal lighting , military industry, medical treatment, IDC data center, marine port &dock ect...

MAIN FEATURES:

1. World Leading technology

※ The state-of-art fully DSP technology with output isolation transformer

※ Super wide input voltage/frequency range, adapt to harsh utility environments

※ Soft start with settable time 6- 100 seconds,stronger protection to rectifier , more compatible with generator

※ Output power factor 1.0optional, and output short-tolerant capability

※ Intelligent self diagnosis, mass memory( 12000 events) to record operation log

※ Super long MTBF≧200000 hours, and short MTTR

※ Intelligent parallel up to 8 units and parallel ECO Mode.

※ Most intelligent digital equal current parallel technology,self-load share algorithm

※ Single and parallel mode ECO available

※ Independent cooling system, muti-protection design, ensuring high reliability with harsh environment and load

※ Output short-tolerant ability,

※ ABM battery technology, extremely low ripple current extending battery lifespan

※ Lithium ,Ni-cd, Lead -Acid battery acceptable

※ Frequency convertor mode function

※ Power walk-in function, protecting rectifier during the transferring process from battery to AC mode

※ Emergency Power Off(EPO)

2. Super Reliability

※ Fully DSP control with output isolation transformer, super reliability.

※ Redundant SPS,fan etc. design, enhancing system reliability.

※ Build-in output isolation transformer, eliminate neutral to ground drifting voltage, and isolate load harmonic current influence to inverter.

※ Besides highest design technology,only qualified famous brand components used.

※ Conformal-coating PCB fixed in sealed box,keeping away from outside effect

3.Communication interface

※ Build-in various communication connectors (RS232, RS485, AS400, EPO etc).

※ Optional cards available: SNMP, battery management kit, lighting proof module, dust proof filter etc.

4. Easy Operation

※ Front side maintenance, top or bottom wiring connection, with protective equipment.

※ Friendly human machine interface, with 7inch touch screen .

5.PerfectApplication:

※ Health & Medical,

※ Petroleum&Oil Chemical,Iron&Steel etc.

※ Theater, Harbor, Transportation etc.

※ Traffic facilities etc.
